LMP

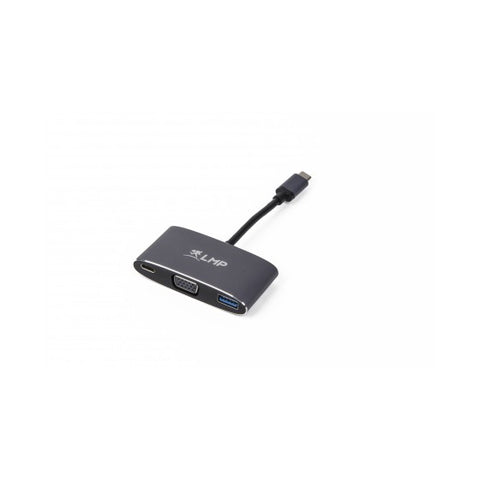

LMP USB-C Multiport Adapter VGA & USB 3.0
LMP USB-C VGA & USB 3.0 Multiport Adapter, space grey
Product Overview
USB-C (using the USB 3.1 bus) to VGA for connecting external monitors, projectors, TVs, etc. VGA transmits video signal. Supports output of up to1920x1080 (1080p), with flexible support for USB 5G and DisplayPort 1.2 (DP Altmode). Supports VGA with bandwidth of 2.7 Gbps (HBR) and 1.62 Gbps (RBR) per track. Features an USB port to connect external peripherals. Connects an USB cable (USB 3.0, 2.0, 1.1) to your computer with USB-C port. Supplies 3A max. power to attached devices with 5 Gbps max. transfer rate. Compatible to all Mac or PC with USB-C port. USB-C port only for PowerDelivery.
Key features
• 3-port USB-C multiport adapter
• Plug & Play (no driver needed) and bus powered
• transmits video over VGA with up to FHD 1080p resolution
• data transmission over USB 3.0 with max. 5 Gbps
• power Delivery via USB-C port to attached host computer and connected devices
Input ports
USB 3.1 Type-C Male (compatible with Thunderbolt 3 port)
Output ports
1x VGA (up to FHD 1080p)
1x USB 3.0 (up to 5 Gbps)
1x USB-C for Power Delivery
Power
USB bus powered or through PowerDelivery
Resolutions
2048x1152 (QWXGA) @ 50/60 Hz
1920x1200 (WUXGA) @ 50/60 Hz
1920x1080 (FHD 1080p) @ 50/60 Hz
1600x1200 (UXGA) @ 50/60 Hz
1280x1024 (SXGA) @ 50/60 Hz
1024x768 (XGA) @ 50/60 Hz
800x600 (SVGA) @ 50/60 Hz
640x480 (VGA) @ 50/60 Hz
Further notes on compatibility and use
• Thunderbolt 3 compatible
• Compatible with the Apple iPad Pro!
• Not compatible with the Apple USB SuperDrive
